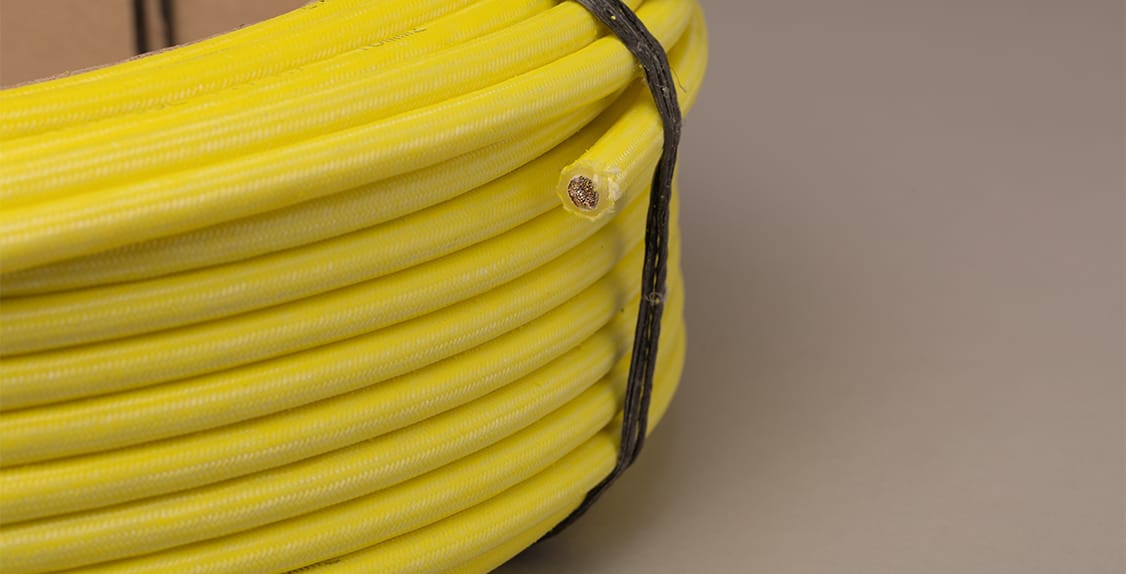

NEXANS SIWO-KUL®
The SIWO-KUL® cable is used where high flexibility is required and high temperature conditions are present.
It is therefore a suitable connection cable for high voltage machines like:
Transformers
Motors
Generators, etc.
The operating temperature for continuous service extends from –55°C up to 180°C.
Construction
Copper conductor tinned, flexible IEC 60228, class 5
Tape (up 16 mm2), Semi-conductive layer (only for 6.6 and 13.8 kV)
Silicone rubber insulation
Separator tape
Protective synthetic yarn braiding, varnished
SIWO-KUL® B10 1.1KV
SIWO-KUL® B10 3.7KV
SIWO-KUL® B10 6.6KV
SIWO-KUL® B10 13.8KV
